SRCŒ^ƒgƒ‰ƒ“ƒX

�_	—e—Ê	‰¡•�	‰œ�s	Žæ•t‰¡	Žæ•t‰œ	Žæ•tŒŠ	�‚‚³	�d—Ê

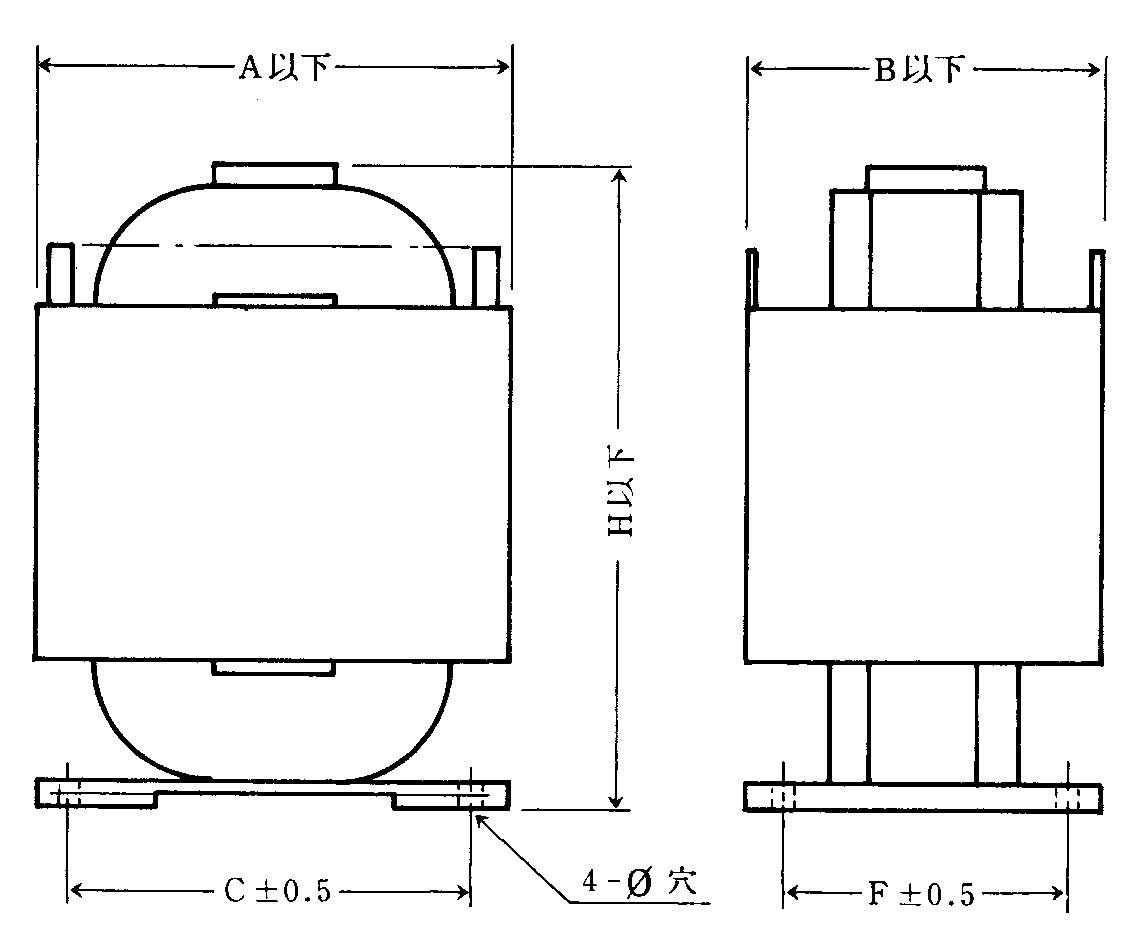

Œ^–¼	[VA]	A[mm]	B[mm]	C[mm]	F[mm]	ƒ³[mm]	H[mm]	[kg]
SRC6.3	6.3	55	50	38	28	4	65	0.25
SRC8	8	60	50	44	28	4	65	0.3
SRC10	10	60	50	44	28	4	75	0.35
SRC16	16	60	55	44	33	4	85	0.5
SRC20	20	60	60	44	38	4	85	0.6
SRC25	25	70	60	51	38	4	95	0.7
SRC32	32	70	65	51	44	4	95	0.8
SRC40	40	70	70	51	51	4	95	1.0
SRC50	50	85	65	64	40	5.5	115	1.2
SRC63	63	85	70	64	47	5.5	115	1.3
SRC80	80	85	80	64	55	5.5	115	1.7
SRC100	100	85	85	64	64	5.5	115	2.0
SRC125	125	105	80	84	55	5.5	140	2.2
SRC160	160	105	85	80	60	6.5	140	2.5
SRC200	200	105	95	80	70	6.5	140	3.0
SRC250	250	105	105	80	80	6.5	150	3.9
SRC320	320	130	105	105	80	6.5	150	4.5
SRC400	400	130	120	105	92	6.5	150	5.4
SRC500	500	145	120	120	92	6.5	155	6.5
SRC630	630	145	130	120	105	6.5	155	8.0
SRC800	800	155	145	126	116	8	155	9.0
SRC1K	1000	160	150	132	116	8	190	12.0
SRC1.5K	1500	180	160	150	120	10	220	14.0
SRC2K	2000	190	180	160	140	10	230	17.0
SRC3.5K	3500	250	250	220	140	10	245	25.0
